Anchors
Our Products
We supply a variety of Anchors as below, manufactured from high-grade steel and hot-dipped galvanized to ensure a long service life. There are a variety of lengths, diameters, and thicknesses to choose from

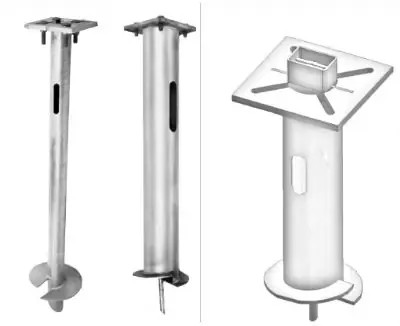

Light Pole
Our Light Pole foundation anchor is a one-piece steel pile used to support light poles
- manufactured with high-grade steel to ensure high-load support
- The top of round pipe is welded with a square plate
- Hot-Dipped Galvanized surface treatment ensure a long service life
- Round Pipe Diameters: 4″ (102mm), 6.63″ (168mm), 8.63″ (219mm), 10.75″ (273mm), etc
- Helices Diameters: 10″ (254mm), 12″ (305mm), 14″ (256mm), etc
- Anchor Lengths: 5′ (1.5m), 7′ (2m), 8′ (2.4m) ,10′ (3m), etc
Helix Screw
Ground or Earth anchors have been widely used for anchoring sheds, shelters, trees and more
- Can be installed by hand or by machine
- Material: ASTM A500 Grade B steel which equals ASTM A36
- Surface treatment: Hot-Dip Galvanized/Powder coated or Painted, galvanized to meet ASTM Specification A123 for Long Resistance to Rust
- Fast installation, cut schedules substantially
- No installation vibration or noise concerns
Wall Plate
Used to stabilize existing walls that are failing or bowing inward, or for adding strength in newly constructed walls
- Wall plate: 12″ x 28″ x 10 gauge, ASTM A1011
- Earth plate: 12″ x 18″ and 12″ x 28″ x 10 gauge, ASTM A1011. Fabricated from two wall plates welded in a cross pattern
- All-thread rod: 2pcs x ¾ – 10 UNC 2A, 80″ long
- Rod coupler: ¾ – 10 UNC 2B, 3″ long x 0.984″ diameter
- Heavy square nuts: 2pcs x ¾ – 10 UNC 2B
- Surface treatment: Hot dipped galvanized ASTM A123
Leading supplier in the helical pile and foundation repair industry
Just click below to get in touch
