Helical Piles
Our Products
We provide both round and square shaft helical piles in a variety of lengths, diameters, and thicknesses, with corrosion protection conforming to ASTM A123 standard for hot dipped galvanized coating.

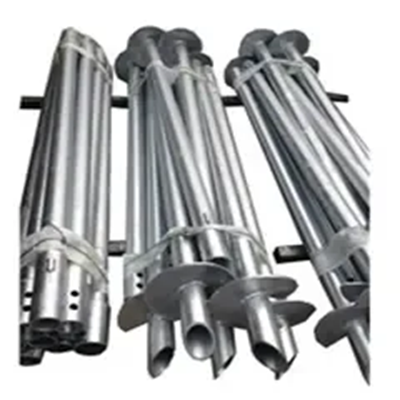

Round Shaft
Seamless high tensile pipe, conforms to ASTM A500 Grade B/C or other customized material
- Helical material: ASTM A36 Hot rolled plate
- Corrosion protection conforms to ASTM A123 standard for Hot-Dipped Galvanized coating
- Leading edge of Helices beveled 45 degrees
- Greater section modulus strength to resist twisting and deflection
- Greater load capacities
Square Solid Shaft
Square Solid Bar with round corner 5mm radius, material either ASTM 5140 or ASTM 1045 steel
- Helix Plate material conforms to ASTM A36 hot rolled plate
- Helix thickness are available in 3/8″ and 1/2″
- All helix leading edges sharpened and rock cut and 45 degrees
- Corrosion protection to conform to ASTM A123 standard for Hot-Dipped Galvanized
- A better conventional solid steel with extra-high strength
- Avoid heat damage on shaft caused by upset coulping process
Square Tubular Shaft
These were developed to provide more lateral stiffness. Used for numerous oil & gas applications
- Available in 2″, 2.5″, 3″ or 4″ square tube
- Helices thickness is available in 3/8” and 1/2”
- Helices material conforms to ASTM A36 hot rolled plate
- All helix leading edges sharpened and rock cut and 45 degrees
- Corrosion protection to conform to ASTM A123 standard for hot dipped galvanized coating
